TKT Engine Driven Van Refrigeration Units

Direct-Drive Van Refrigeration Units

TKT, the leading manufacturer of transport refrigeration units in China, has been researching, designing and producing refrigeration units since 1993, and we were also the first company to design and produce electric refrigeration systems in China.

> OEM/ODM/Customized Available

> Van & Truck Refrigeration Units Word Leader Manufacture

> IATF 16949/ISO9001 2015/ISO 14001 Quality Control Certification

Send Email

Inquiry

Share With:

Product CaTEGORY

Bus Air Conditioner

Electric Bus Air Conditioner

Engine Driven Bus Air Conditioner

Other Bus Air Conditioner

Battery Thermal Management System

EV Charging Station

RV Air Conditioner

Truck Air Conditioner

Parking Air Conditioner

Conventional Truck Air Conditioner

Van Refrigeration Units

Electric Van Refrigeration Units

Direct-Drive Van Refrigeration Units

Three Wheelers Refrigeration Unit

Truck Refrigeration Units

Standby Refrigeration Units

Diesel Engine Refrigeration Units

Phone: + 86-15538379692

Email : sales@tkthvac.com

Whatsapp: +86 13015505615

Address: A1512 Juzheng Building Qinling Road, Zhongyuan District, Zhengzhou City, Henan Province, China

TKT VAN REFRIGERATION BRIEF INTRODUCTION

Brief Introduction of TKT Van Refrigeration:

TKT products already cover the entire range of transport refrigeration units. In this part, we will detail the Van refrigeration systems that TKT is now selling.
Considering the different demands of customers for Van refrigeration systems, Truck refrigeration units generally include two types, one for transporting fresh cargo and the other (freezer unit) for transporting frozen cargo on the road. Here are 2 kinds of TKT's hot selling Rooftop-mounted Van refrigeration systems, are Vehicle Engine Direct Driven Van Refrigeration Units and Engine Direct Driven unit with AC220V/380V Electric standby unit for Van respectively.

Specification Table:

The Critical components TKT Refrigeration system uses are imported from Famous World Top Brand with High Quality, and a stylish design that fits any Van model.
Tips: Depending on the type of vehicle, ambient temperature, transported cargo and required cooling capacity, you can choose the most suitable product with the help of our sales team.

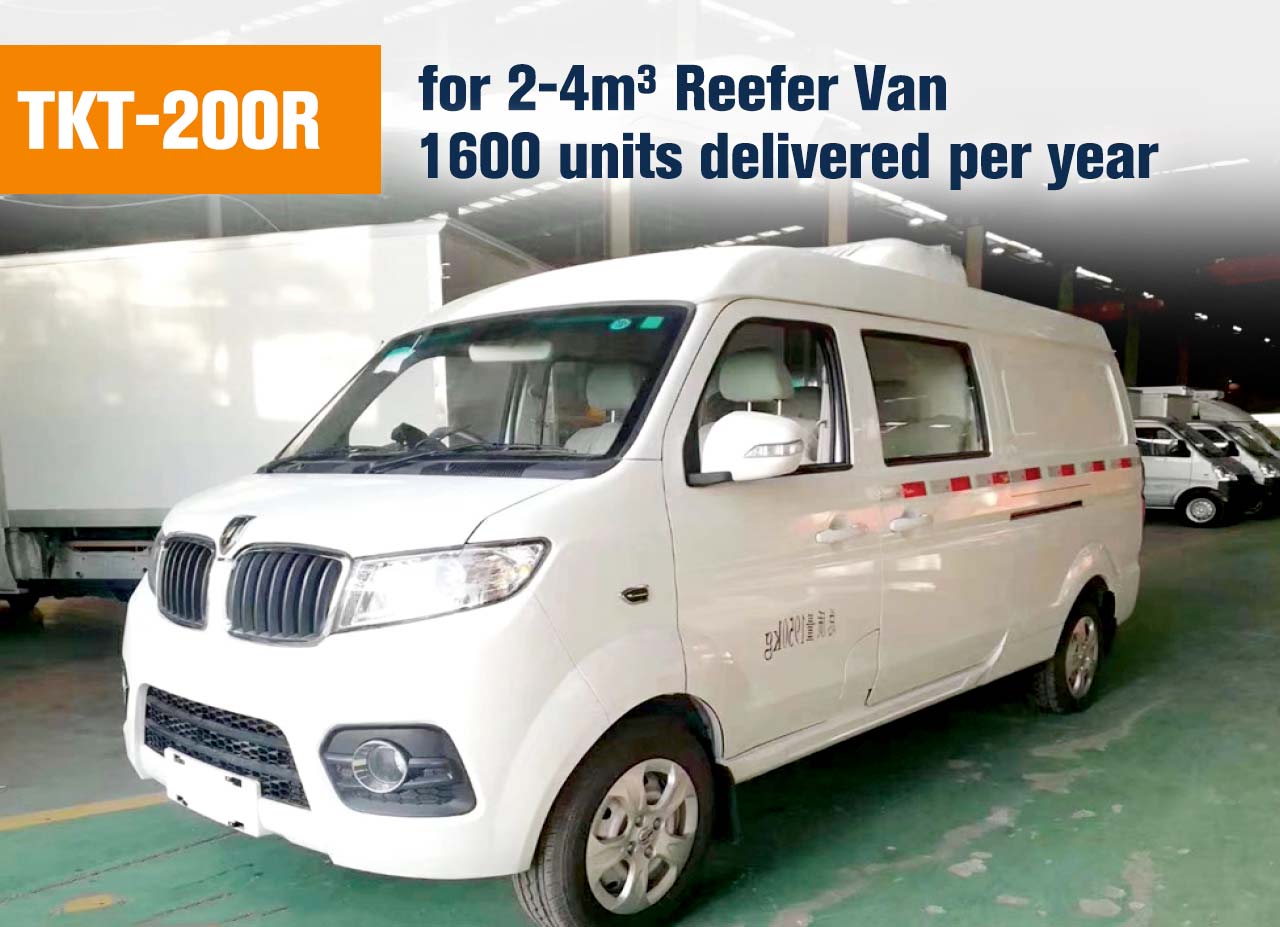

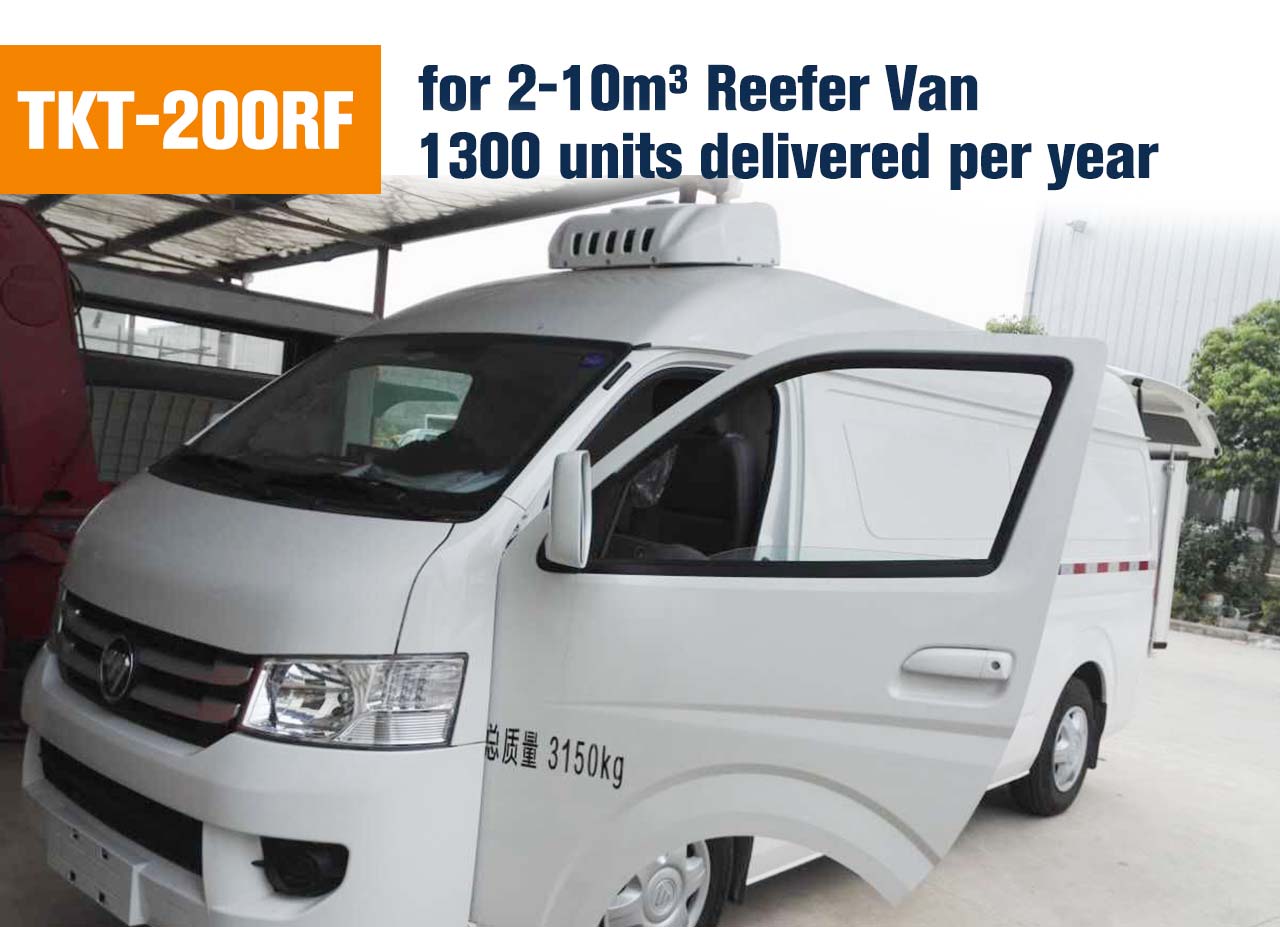

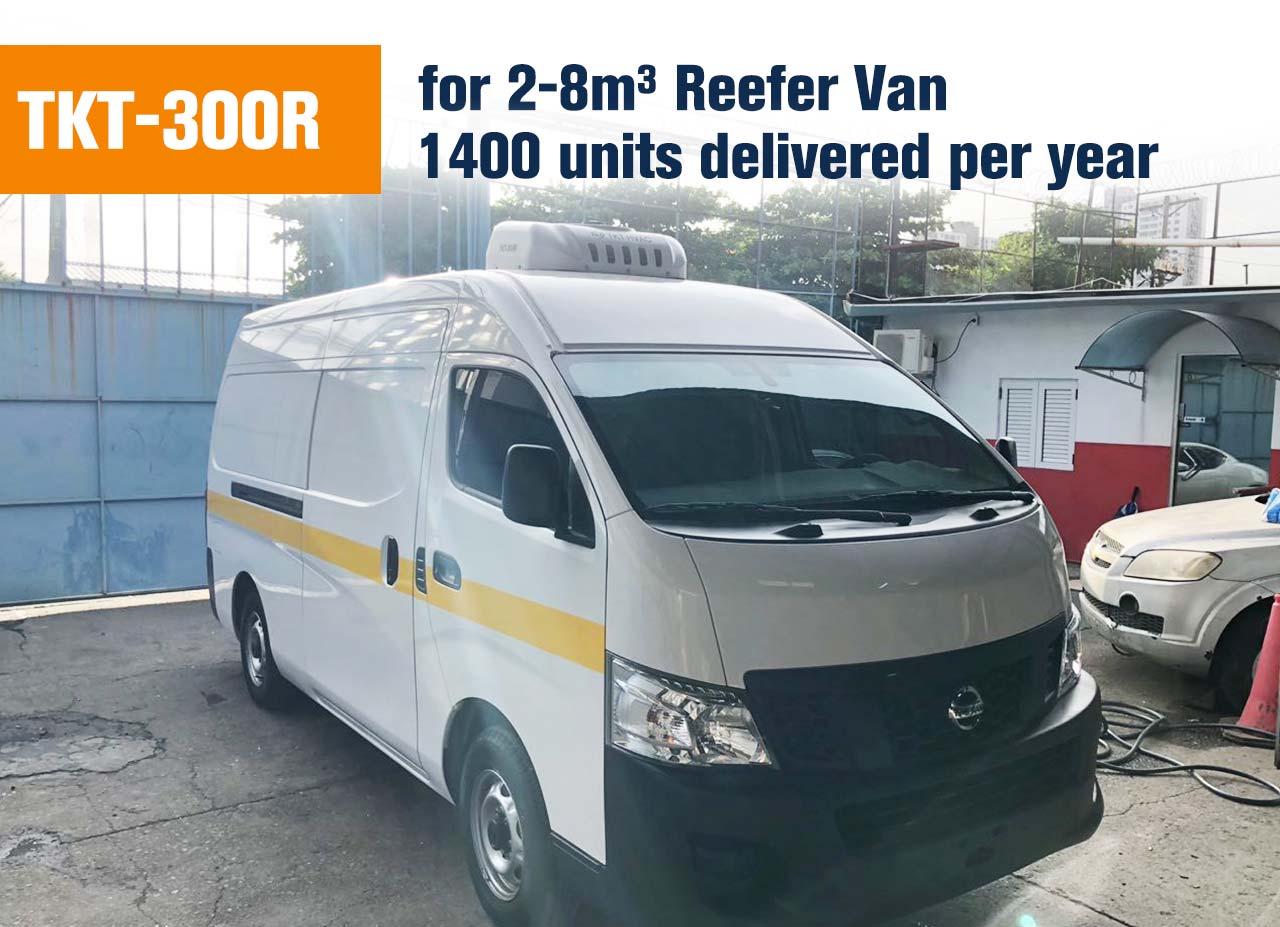

Model		TKT-200R	TKT-300R	TKT-200RF	TKT-300RF

Driven Type		Engine Driven
Structure		Roof Top Model
Compressor		JAP SD5S14 (138cc)
Voltage		DC12v / 24V
Volume of Container		3CBM/2.2 Meters	6CBM/3.2Meters	3CBM/2.2 Meters	5CBM/3.2 Meters
Volume of Container		Body (-5℃ )	Body(-5℃ )	Body (-20℃ )	Body(-20℃ )
Refrigerant		HFC-R134A,	HFC-R404A,	HFC-R404A,	HFC-R404A,
Refrigerant		0.9-1.1KG	1.1-1.3KG	1.1-1.2kg	1.2-1.3kg
Controller		Digital, In Cab, Made in Korea
Cooling Capacity		-5℃-1235W/4212BTU	-5℃-2470W/8424BTU	-20℃-1100W/3770BTU	-20℃-2170W/7400BTU
Cooling Capacity		0℃-1820W/6200BTU	0℃-2990W/10200BTU	0℃ -2170 W/7400 BTU	0℃-3520W/12000BTU
Condenser	Coil	Copper Tube & Aluminum Fin
	Fan No.	1 Fan, DIA 280MM	1 Fan, DIA 280MM	1 Fan, DIA 280MM	1 Fan, DIA 280MM
	Dimension	789450212 mm	789450212mm	789450212 mm	916493233mm
Evaporator	Coil	Copper Tube & Aluminum Fin
	Blower No.	1 Blower, DIA 230MM	1 Blowers(Turbo)	1 Blower, DIA 230MM	2 Blowers, DIA 230MM
	Air Flow	610m³/h	955m³/h	610m³/h	1160m³/h
	Dimension	706595190mm	1010593185mm	706595190mm	1006590188mm

TKT Van Refrigeration Units Design Advantage:

A variety of models to choose & Easy to Operate

This series includes fresh and frozen functions, and the right model can recommend for you according to your different requirements of the cargo type, ambient temperature and the length of the cargo van;
Besides, Our Van Refrigeration System has multi-functional controller with microprocessor control system, and temperature control panel in the cab for the driver to better control the temperature of the Van's Container.

High quality Critical components and the best raw materials

The Critical components TKT Refrigeration system uses are imported from Famous World Top Brand with High Quality，such as Danfoss, Sanden, Valeo, etc.;
For Condenser and Evaporator coils, TKT uses all Copper Tubes and Aluminum Fin, corrosion-resistant, so the service life can be up to more than ten years, to improve the life time of the product.

Stylish and intimate design, Easy to Install

This series are all Rooftop-mounted design, the condenser is mounted on the roof (For DC Powered Electric Van Refrigeration Units, Condenser Assembly with In-Built Electric Compressor, so you don't need to worry about the space to install the compressor); Besides, Slimline design of Evaporator for maximum cargo space.

Green & Environment-friendly

Uses ozone-friendly refrigerant R134A, R404A; For DC Powered Electric Van Refrigeration Units, the compressor and accessories are all powered by electricity, thus reducing energy consumption and protecting the environment.

Really powerful Cooling Capacity, Higher efficiency and more stable working.

TKT refrigeration system uses condensers and evaporators made of the best materials (Copper Tubes and Aluminum Fin) to bring you super cooling effect and maximum Air flow capability, Reliable performance to stand against Hot & Dusty climatic conditions.

Guarantee the integrity of the cargo during loading and unloading

For the stand by unit, capable of the pre-cooling of the container in advance. Besides, ensures normal operation of the refrigeration unit even when the truck is turned off.

Safe Voltage Level

Low current, High-Low voltage protection and more secure system.

Certificated by Various High Standard in US and Europe;

CE, RHS etc. Certificate.

Main Features of TKT Van Refrigeration Units:

Really powerful Cooling Capacity, Large Air flow Capacity.
Green and Environment-friendly.
Famous World Top key components & Best raw materials.
Easy to Install and Operate.
Certificated by Various High Standard in US and Europe (CE, RHS etc. Certificate).
The high quality of the product guarantees its long life.
Excellent and considerate After-sales service (18 Months Warranty Time After Delivery;24/7 Service time)
Reasonable price.
Stylish and intimate design
Low current, High-Low voltage protection

Certification of TKT Van Refrigeration Units:

Test Video:

Structure of Van Refrigeration Units:

Evaporator Assembly;
Rooftop Mounted Condenser Assembly with In-Built Electric Compressor (For DC Powered Electric Van Refrigeration Units); Independent compressor (For Engine Direct Driven Van Refrigeration Units)
In Cab Digital Controller
Motor（Stand by unit）
Other major components, such as Hoses Pipes, Wire Harness, Installation Accessories.

Inside Components:

Evaporator Assembly; Condenser Assembly; Compressor; Digital Controller; Motor; Hoses Pipes, Wire Harness, Installation Accessories.

Other Product:

If you are interested in working with TKT, please feel free to contact us.
