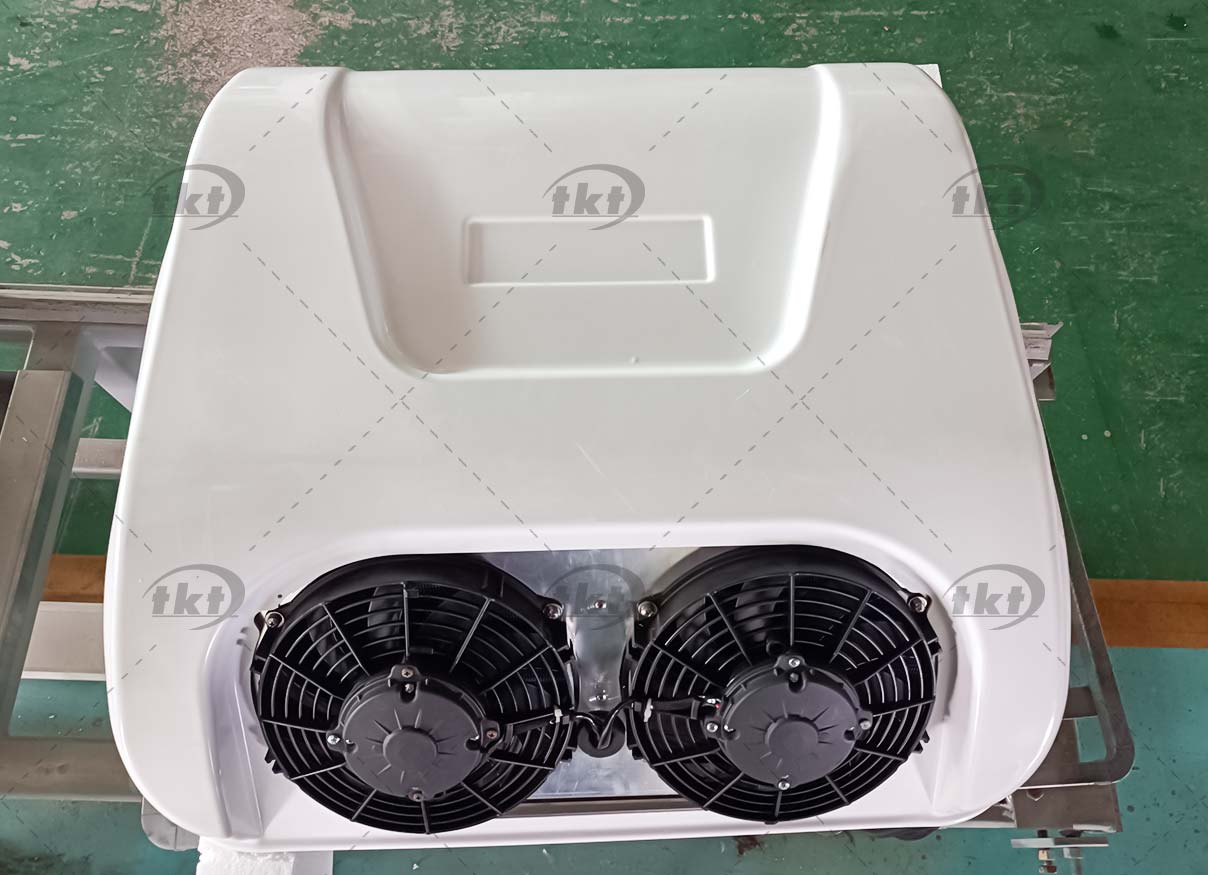

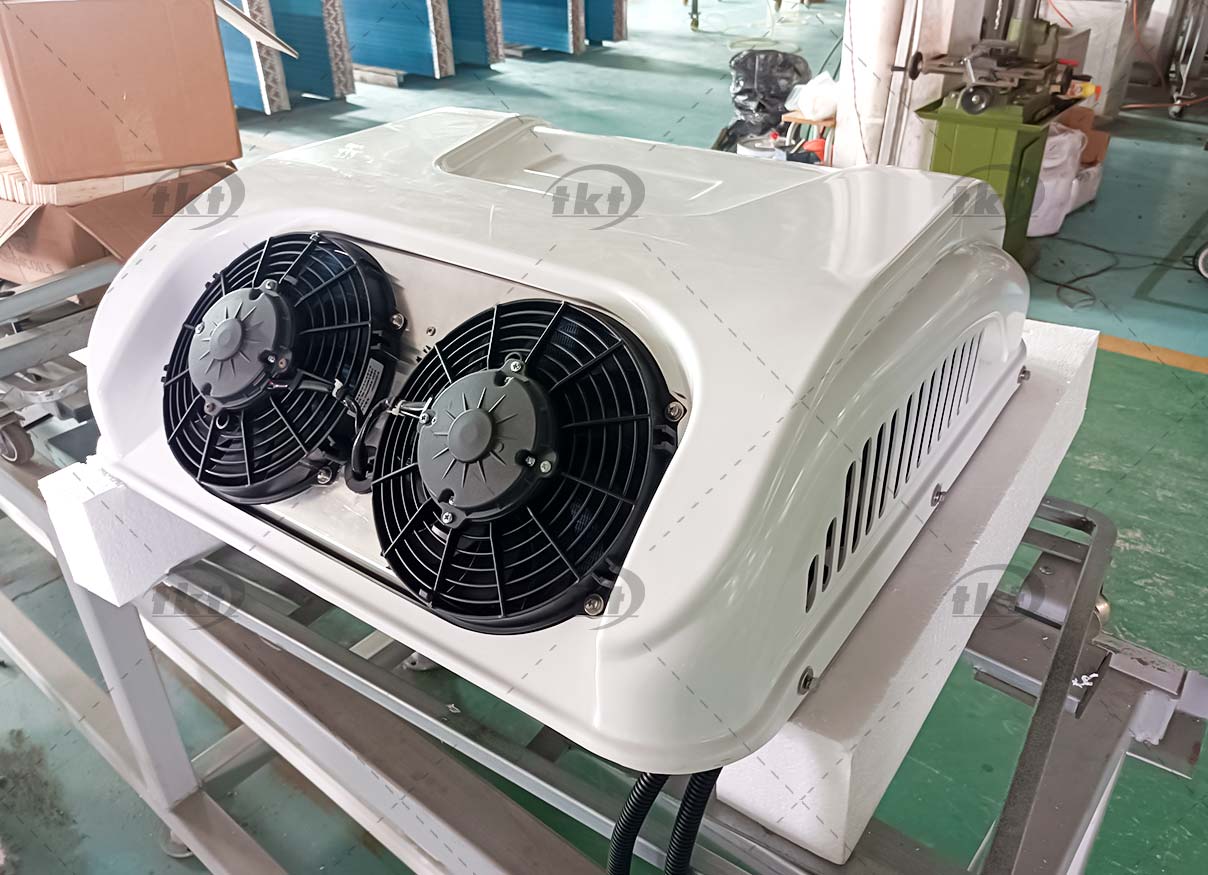

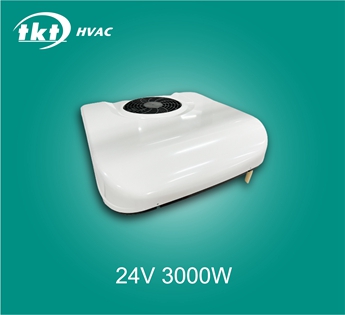

24V Parking A/C Roof Top Design - 20ERT

Parking A/C refers to an air conditioning system that can still provide cooling even when the vehicle's engine is turned off. It is also known as a battery-driven air conditioner or electric air conditioner. This type of A/C is typically designed for customers who want to use their air conditioner while the vehicle is stationary. It can be applied in a wide range of settings including truck cabins, trailers, farming machines, construction machines, caravans, and more. TKT manufactures and supplies high-quality Parking Air Conditioner. You can contact us anytime to get the cheap factory price of 24V Parking Air Conditioner.

> Cooling Capacity: 3000W(10230BTU)

> Voltage: 12V/24V

> Application:Truck cab, trailer, caravan, farming machine, construction machine, caravan, etc

> MOQ：2 units (Better shipping costs)

Send Email

Inquiry

Share With:

Product CaTEGORY

Bus Air Conditioner

Electric Bus Air Conditioner

Engine Driven Bus Air Conditioner

Other Bus Air Conditioner

Battery Thermal Management System

EV Charging Station

RV Air Conditioner

Truck Air Conditioner

Parking Air Conditioner

Conventional Truck Air Conditioner

Van Refrigeration Units

Electric Van Refrigeration Units

Direct-Drive Van Refrigeration Units

Three Wheelers Refrigeration Unit

Truck Refrigeration Units

Standby Refrigeration Units

Diesel Engine Refrigeration Units

Phone: + 86-15538379692

Email : sales@tkthvac.com

Whatsapp: +86 13015505615

Address: Zhengzhou City, Henan Province,China Post Code: 450000.

TKT Electric Parking A/C Introduction:

All Product:

Parking A/C means the air conditioner still able to cooling when vehicle engine is off, also called battery driven air conditioner and electric air conditioner. Normally it is designed for clients who want to use air conditioner when their vehicle parked in stationary. It can be applied widely on truck cabin, trailer, farming machine, construction machine, caravan, etc.

If you do not know how to choose, please contact us. We will provide you with the most professional service.

Specification Table:

Model No.	TKT-20ERT

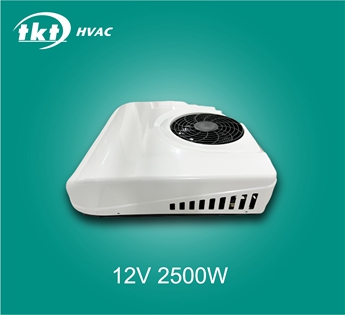

Cooling Capacity	2500W(8525BTU)	3000W(10230BTU)
Structure	Roof Top
Refrigerant	R134A
Power Supply	12V/24v
Upper Unit Sizes	805805180
Net Weight	28KG	29KG

Model No.	TKT-20ER	TKT-50ER	TKT-20ES	TKT-50ES

Structure	Roof Top Model		Split Model
Cooling Capacity	3000W / 10230 BTU	5000W / 17000 BTU	3000W / 10230 BTU	5000W / 17000 BTU
Compressor	Electrical Compressor 21cc	Electrical Compressor 26cc	Electrical Compressor 21cc	Electrical Compressor 26cc
Voltage	DC12V/24V
Standard Total Current	DC12V/60A; DC24V/30A	DC12V/90A; DC24V/45A	DC12V/60A; DC24V/30A	DC12V/90A; DC24V/45A
Condenser	QTY of Condenser Fan, 2 PCs		QTY of Condenser Fan, 1 PCs
	Condenser Air Flow, 2000M3/H		Condenser Air Flow, 1500M3/H
Evaporator	QTY of Evaporator Blower, 1 PC
	Evaporator Air Flow, 1000M3/H
Refrigerant	R134A, 600g
Dimension	700750205mm (LWH)		728522200mm (LWH)
Application	Truck cab, trailer, caravan, farming machine, construction machine, caravan, etc

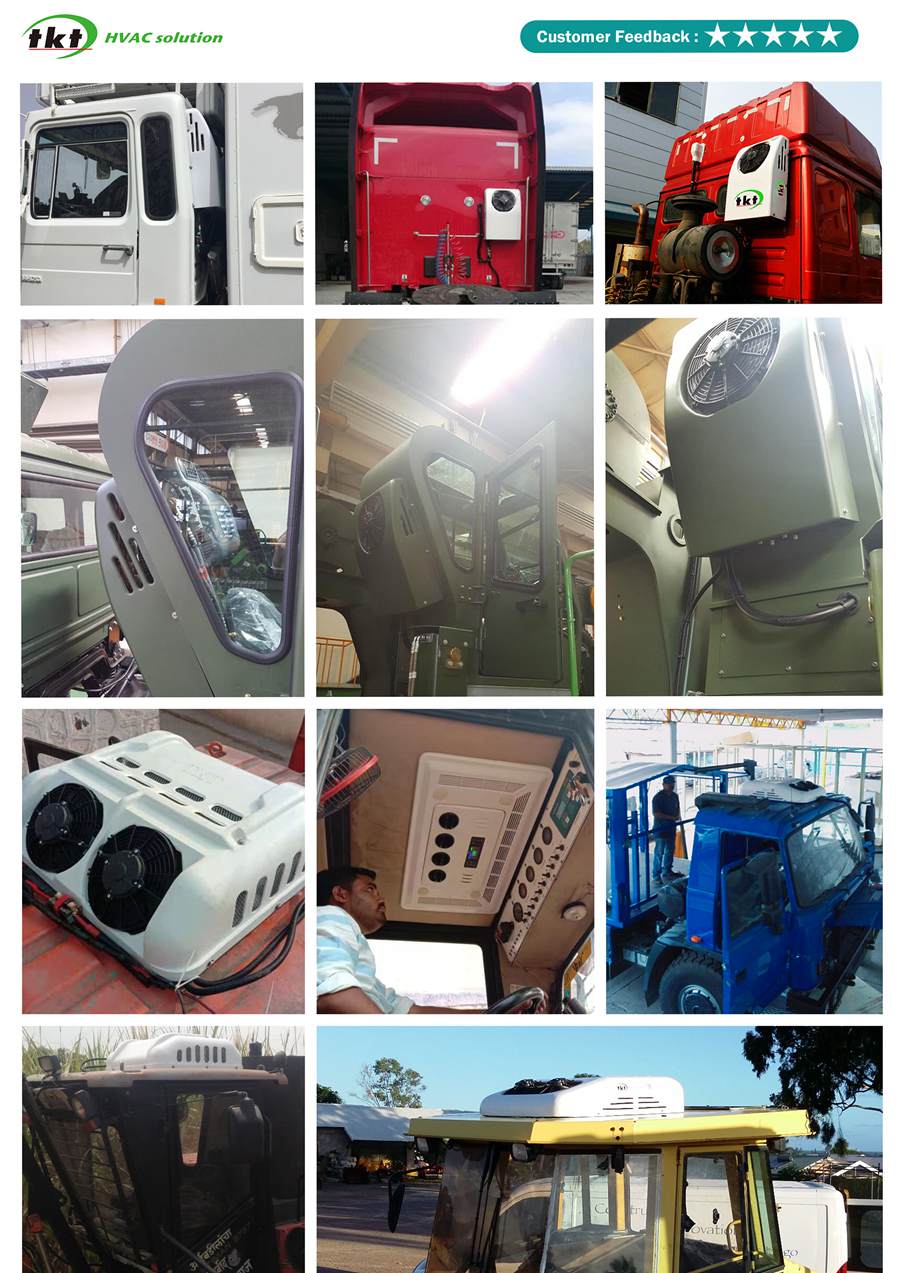

TKT parking air conditioner has roof top self contained design and split design.

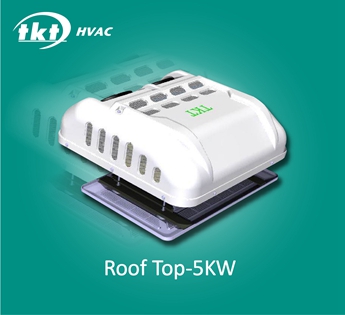

TKT-20ER and TKT-50ER model are self-contained rooftop parking cooler, one piece design make it easy for installation, 3KW/5KW cooling capacity option meet different cooling requirement! The standard voltage is DC12V/24V.(DC48V, DC72V, DC96V can be customized).

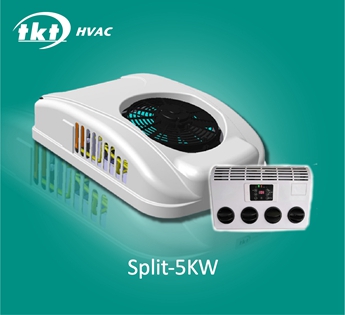

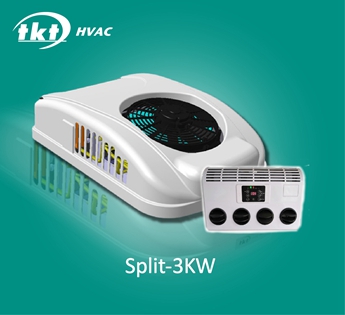

TKT-20ES and TKT-50ES model are self-contained rooftop parking cooler, split design: condenser can be back wall mounted( or rooftop mounted), digital controlled evaporator installed inside of truck cabin. 3KW/5KW cooling capacity option meet different cooling requirement! The standard voltage is DC12V/24V.(DC48V, DC72V, DC96V can be customized).

TKT Parking A/C Main Features：
▲ZERO CO2 Emission, truly environment-friendly; Zero fuel consumption helps driver reduce cost : for example, if driver use ac 6 hour s per day, 200 days per year, fuel consumption per hour is 3.5L/h, fuel price: 0.9USD, then the reduced cost is: 6*200*3.5*0.9=$ 3780
▲Security of a comfortable rest : the truck’s driver can rest in a healthy climate and safe cabin
▲Much safety on the roads : as stress and tiredness are reduced, also less risks during drive time
▲ 18 Months Free Warranty for Whole units
▲3 Years Free Warranty for Electric Compressor;
▲Sales and Service Center Cover more than 85 countries to provide 7*24 hours technical support;

OEM/ODM Process
During the passed 24 years, TKT grows to the 100% OEM choice in China, for both bus A/C and truck refrigeration units, such as Yutong, Nanjing Golden Dragon, Xiamen Golden Dragon ect (Bus A/C), CIMC, Xinfei, Hongyu ect (Truck Refrigeration units). For the international market, TKT is the OEM for TATA Motors, TATA Marcopolo Motors, Daewoo ect, and exported to more than 85 countries with sales and service center.

If you are interested in working with TKT, please feel free to contact us.
