RV A/C Under Bed/Bench Design 30UB-AC Caravan Air Conditioner Supplier

> Cooling Capacity: 2500W / (8525BTU)

> Voltage: AC220V 50HZ/110V 60HZ

> Application: Caravan/Motorhome

> Dimension: 734*398*296mm

> MOQ：3 units (Better Shipping Costs)

Send Email

Inquiry

Share With:

Product CaTEGORY

Bus Air Conditioner

Electric Bus Air Conditioner

Engine Driven Bus Air Conditioner

Other Bus Air Conditioner

Battery Thermal Management System

EV Charging Station

RV Air Conditioner

Truck Air Conditioner

Parking Air Conditioner

Conventional Truck Air Conditioner

Van Refrigeration Units

Electric Van Refrigeration Units

Direct-Drive Van Refrigeration Units

Three Wheelers Refrigeration Unit

Truck Refrigeration Units

Standby Refrigeration Units

Diesel Engine Refrigeration Units

Phone: + 86-15538379692

Email : sales@tkthvac.com

Whatsapp: +86 13015505615

Address: A1512 Juzheng Building Qinling Road, Zhongyuan District, Zhengzhou City, Henan Province, China

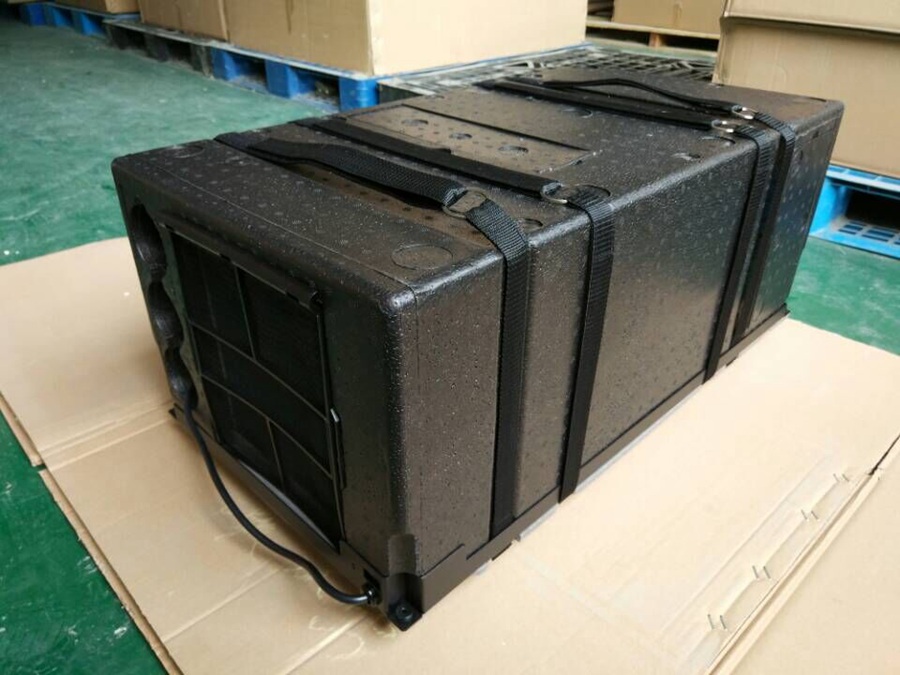

Caravan Air Conditioner TKT-30UB

TKT Caravan air conditioners Brief Introduction：

TKT, as the leading manufacturer of caravan air conditioners in the world, began the research, design, and production of caravan air conditioners in 2001 due to the higher comfort requirements of caravans. From the beginning, TKT designed a range of Caravan air conditioners, which are all capable of being installed in Caravans, RVs, Motor homes, Campers, and Yachts for the global market. This RV air conditioner can be used under the bed with a bench design. Or you can contact us for more caravan air conditioner product information and the best RV air conditioner price.

Technological Data:

Model NO.	TKT-30UB
Cooling Capacity	2500W（7850BTU）
Extra electric heater	500W
Input Power	750W (+500W electric heater)
Current	3.9A (+2.3A electric heater)
Power Supply	220～240V/50Hz/60HZ 1Ph&110V, 60HZ
Refrigerant	R410A
Unit Sizes (LWH)	734398296 mm
Net Weight	27.8KG
Compressor	Rechi (Taiwan)
Total Frame Material	one piece EPP(Expanded polypropylene)

All Product:

TKT Caravan air conditioners Design Introduction:
TKT Caravan air conditioners Structure:

▲Condenser assembly, Evaporator assembly, Compressor assembly.
▲Refrigerant R410A.

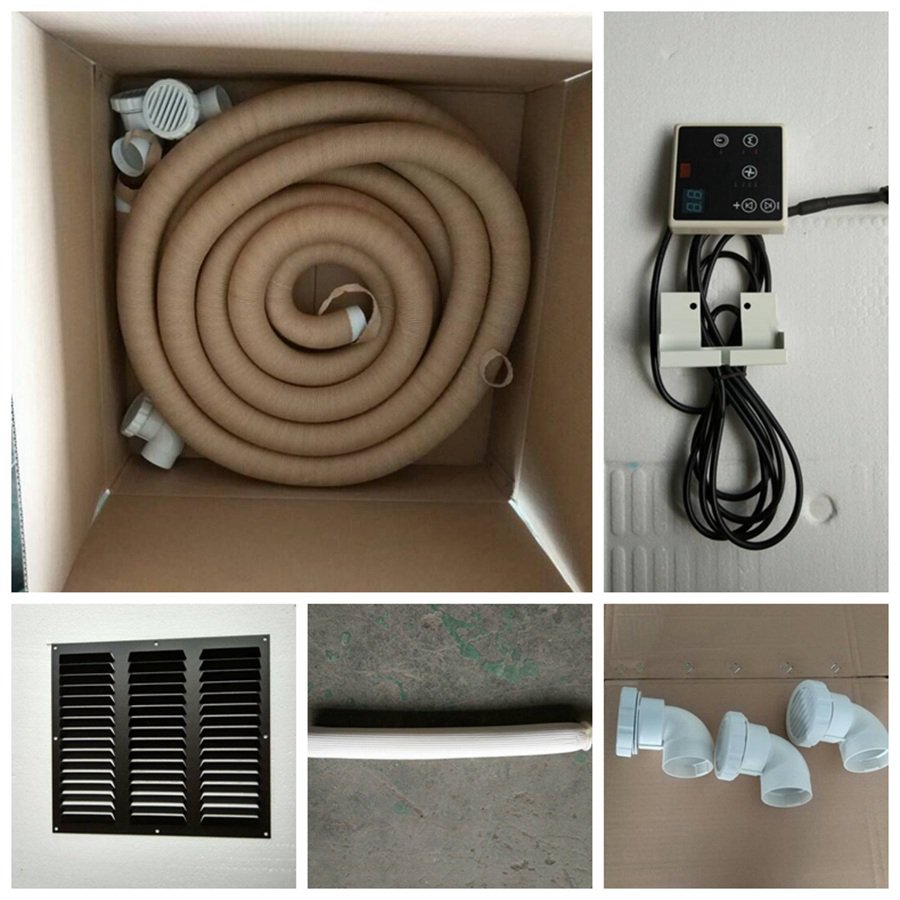

▲Other major components, such as Heat pump (TKT-30UB), ACRG distribution box, Electric heater, Remote control, Wired-control wall-pad, Expansion valve, Oil separator, Interior panel, Removable and Washable filter, Condenser fan, and Evaporator Blower.

TKT Caravan air conditioners Main Features:

▲Variety of installation options
▲Low noise and vibration, bringing a comfortable atmosphere for drivers and passengers
▲Easy installation & maintenance
▲Environment-friendly
▲Stylish design
▲CE, RHS Certification

TKT Caravan air conditioners Advantage:

▲Multiple options for installation to provide you with the ideal RV air conditioning.
TKT-30UB is a Concealed design, retaining the facade of the caravan as well as the internal structure; TKT-40SD&40THIN is Roof Top mounted.

▲Low noise& vibration.
One-piece EPP frame is used, and outdoor air circulation is through the floor or the wall, so no noise problem troubling passengers via the floor.

▲Mini size, Lightweight, Easy to install and maintain
With a Removable and washable filter to keep the interior clean.

▲With Environment-friendly & non-zone-depleting refrigerant R410A.

▲Really powerful cooling comfort, Higher efficiency and more stable working.
Such as TKT-40SD & 40THIN use ACRG distribution boxes with fully adjustable louvers and blower speeds provide just right cooling comfort, and Axial fan produces big air volume to cool down the condense;
TKT-30UB capable of Air distributed equably & flexibly all over the room via 3 vents & soft pipes, more comfortable.

▲Outstanding RV air conditioning design.
Designed according to European & Australian RV trend, with the manufacture experiences of Under-bench A/C over 10 years, particularly fitting the middle-large self-propelled RV and caravans;
Humanized design, such as TKT-40THIN, the outer machine design is thinner, suitable for cities with limited height, Besides, Sleek shroud design reduces drag.

▲Safe Voltage Level
More secure system, Higher protection degree.

▲Certificated by Various High Standards in the US and Europe, CE, RHS ect Certificated

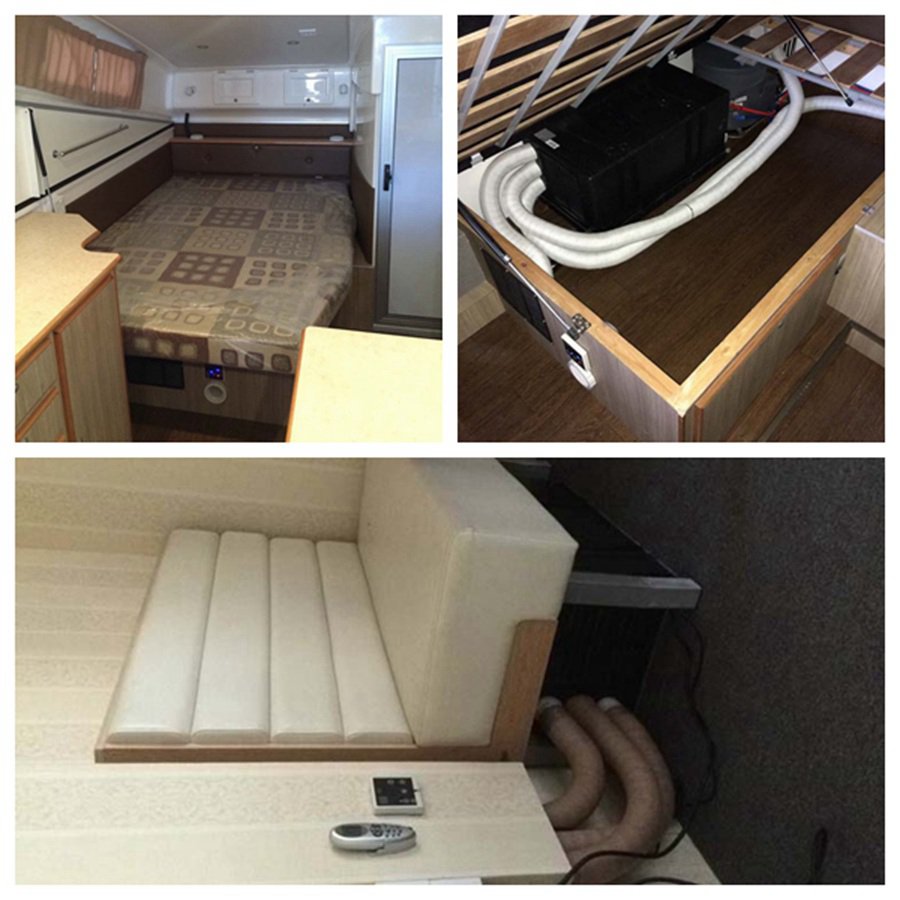

TKT Caravan air conditioners Installation:

Considering the different demands of customers for RV air conditioners, the whole series of TKT Caravan air conditioners are available in two types of installation, one is a concealed installation, capable of being installed under a bench, sofa, bed or cabinet, etc., and the other is Roof Top mounted. This series is specially designed for Caravans, RV, Motor homes, Campers and Yachts, and uses high quality imported compressors, Including RECHI (Taiwan), LG and Mitsubishi. Both the compressor and the control system are powered by electricity or batteries.
Tips: The voltage required by the customer can be customized (for example, AC220/50Hz is standard, and AC110V/60HZ or AC220V/ 60HZ can be customized).

OEM/ODM Process
During the passed 24 years, TKT grows to the 100% OEM choice in China, for both bus A/C and truck refrigeration units, such as Yutong, Nanjing Golden Dragon, Xiamen Golden Dragon ect (Bus A/C), CIMC, Xinfei, Hongyu ect (Truck Refrigeration units). For the international market, TKT is the OEM for TATA Motors, TATA Marcopolo Motors, Daewoo ect, and exported to more than 85 countries with sales and service center.

If you are interested in working with TKT, please feel free to contact us.
