TKT-420E Electric Bus Air Conditioner(Bus Length 12-13M)

12M Electric Bus HVAC-420E

TKT-420E is designed for 10-13 meter pure electric bus, powered by the battery pack of an electric bus. TKT electric A/C, designed for OEM only, is supplied to YUTONG, Golden Dragon, Yaxing, Ankai, Neoplan, Hengtong, Shenlong, Foton and Nanjing Golden Dragon ect main bus manufacturers in China, and OEM to TATA Motor, TATA Marcopolo, Daewoo, Isuzu, MAZ, INCARVEN, MODABUS, GET ect bus manufacture in the world.

> Cooling Capacity: 42KW

> Voltage: DC280-750V

> Compressor: Japan SANYO Brand Vortex Compressor, 74.4cc

> Dimension: 3200*1830*250mm

> Application: 12M Electric Bus

Send Email

Inquiry

Share With:

Product CaTEGORY

Bus Air Conditioner

Electric Bus Air Conditioner

Engine Driven Bus Air Conditioner

Other Bus Air Conditioner

Battery Thermal Management System

EV Charging Station

RV Air Conditioner

Truck Air Conditioner

Parking Air Conditioner

Conventional Truck Air Conditioner

Van Refrigeration Units

Electric Van Refrigeration Units

Direct-Drive Van Refrigeration Units

Three Wheelers Refrigeration Unit

Truck Refrigeration Units

Standby Refrigeration Units

Diesel Engine Refrigeration Units

Phone: + 86-15538379692

Email : sales@tkthvac.com

Whatsapp: +86 13015505615

Address: A1512 Juzheng Building Qinling Road, Zhongyuan District, Zhengzhou City, Henan Province, China

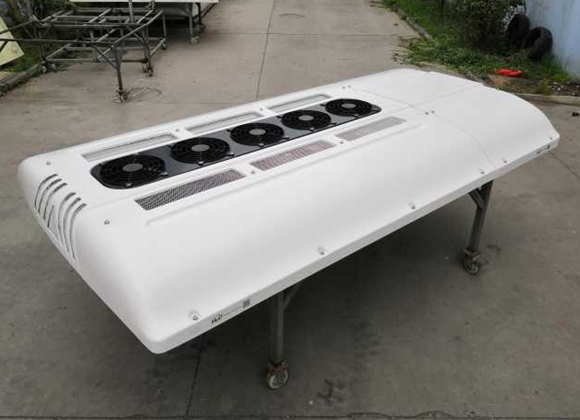

Electric Bus A/C TKT-420E

TKT-420E is designed for 10-13 meters pure electric bus, powered by the battery pack of an electric bus. TKT electric A/C, designed for OEM only, are supplied to YUTONG, Golden Dragon, Yaxing, Ankai, Neoplan, Hengtong, Shenlong, Foton and Nanjing Golden Dragon ect main bus manufacturers in China, and OEM to TATA Motor, TATA Marcopolo, Daewoo, Isuzu, MAZ, INCARVEN, MODABUS, GET ect bus manufacture in the world.

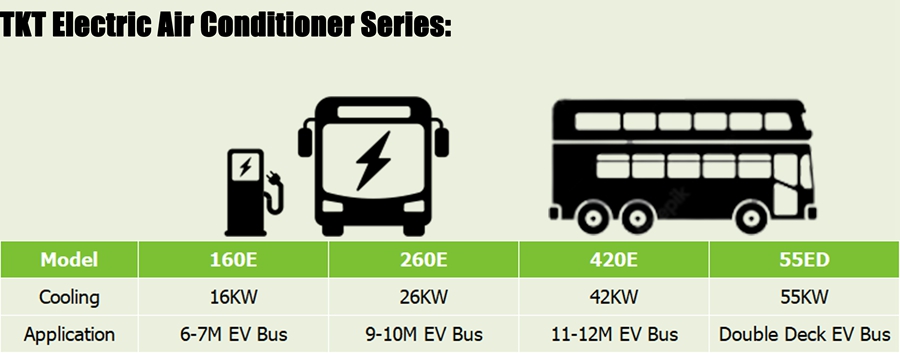

All Series Specification Table:

Model		TKT-160E	TKT-260E	TKT-420E

Cooling		16 KW	26 KW	42 KW
Heating		Heating Pump is optional
Control way		Digital control panel + CAN Control(optional)
Application		6-7m EV Bus	9-10m EV Bus	12m EV Bus
Refrigerant		R134A	R407C
Compressor Voltage/Power Supply		DC250-350V	DC450-750V
Control Voltage/Power Supply		DC24V/8A	DC24V/10A
Compressor		Electric compressor(42 cc/r)	Japan SANYO Brand Vortex Compressor(74.4 cc/r)
Condenser	Model	Copper Tube and Aluminum Fin Structure
	Fan Air Volume	3600 m³/h(2Fans)(3 fans is available, based on clients need)	7200 m³/h(4Fans)	9000 m³/h(6Fans)
Evaporator	Model	Copper Tube and Aluminum Fin Structure
	Blowers Air Volume	7200 m³/h(4Blowers)	10800 m³/h(6Blowers)	14400 m³/h(9Blowers)
Dimension		27001630195mm	27001830250mm	32001830250mm
Weight		185KG	285KG	300KG

As a leading technology manufacturer of bus air conditioners, truck air conditioners, and RV air conditioners in China, TKT never stops innovating new technologies. Having confidence in your products is the first step to the world market. Choosing a quality supplier to work with will make your business twice as successful.

Choice of materials:
The materials used in all TKT products are internationally recognized brands. We select suppliers from all over the world and work with the world's top brands such as Bitzer, Bock, Danfoss, Sanden, Valeo, Alco, and Goodyear. insisting on using copper tubes and aluminum plates will make the products more durable and extend their lifespan.
Safety and stability:
Lightweight and small size. Even the largest 12-meter electric vehicle model measures no more than 3.2 meters, which greatly reduces the weight of the vehicle, improves its safety, and helps to increase the capacity and mileage of the electric vehicle. Safety protection mechanism. More fuses and high-quality electrical components are used to withstand high voltage, and various protection mechanisms such as high-voltage protection and low-voltage protection are adopted to provide good protection for the AC system.

Exclusive design:
The exclusive design of condenser coil structure with patented design, which has more heat release area while using less material, is known as the "highest heat exchange efficiency" design in China.
Adopt high-quality inner thread copper tube and hydrophilic aluminum fins to make condenser and evaporator coils, which are more corrosion resistant, more suitable for use in coastal countries, and have a longer life (more than 10 years) than parallel flow coils (made of pure aluminum).
Adopting the best compressor in the Chinese market, which has been proven in the market for 8 years to ensure reliable and superb cooling performance.
Advanced CAN control + integrated digital control panel control, much lower failure rate than PLC control.

So, why not choose TKT?
Brand Partnership Strength:
In the international market, TKT is the OEM of TATA Motors, TATA Marcopolo Motors, Daewoo, etc., and exports to sales and service centers in 85 countries. After 24 years of experience, we are getting more and more comfortable with production to meet the demanding needs.

Design Capability:
As the world's leading manufacturer of refrigeration equipment, TKT has a team of 135 engineers, including design engineers, structural engineers, electrical engineers, test engineers, EMI/EMC engineers, and after-sales engineers, with complete design, development, testing, and certification capabilities for refrigeration equipment and components. The patented coil structure design will be more economical. The attention to detail has led to increasingly higher quality products.

What is service?
Insisting on making the best products and reducing after-sales is the best service. But TKT has an experienced after-sales team in China and around the world, providing local service in 85 countries and extensive after-sales technical support for all OEMs.

Test Report:

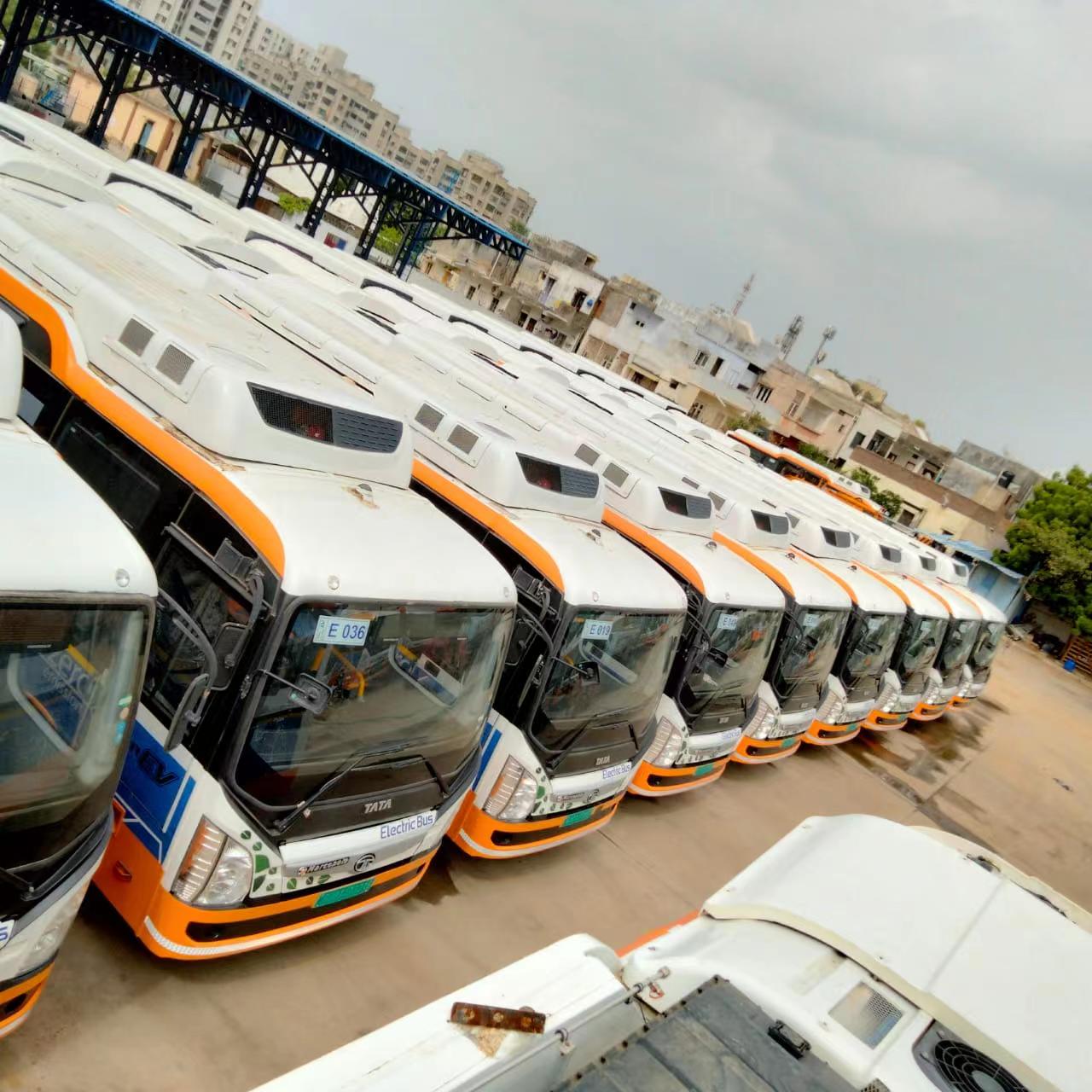

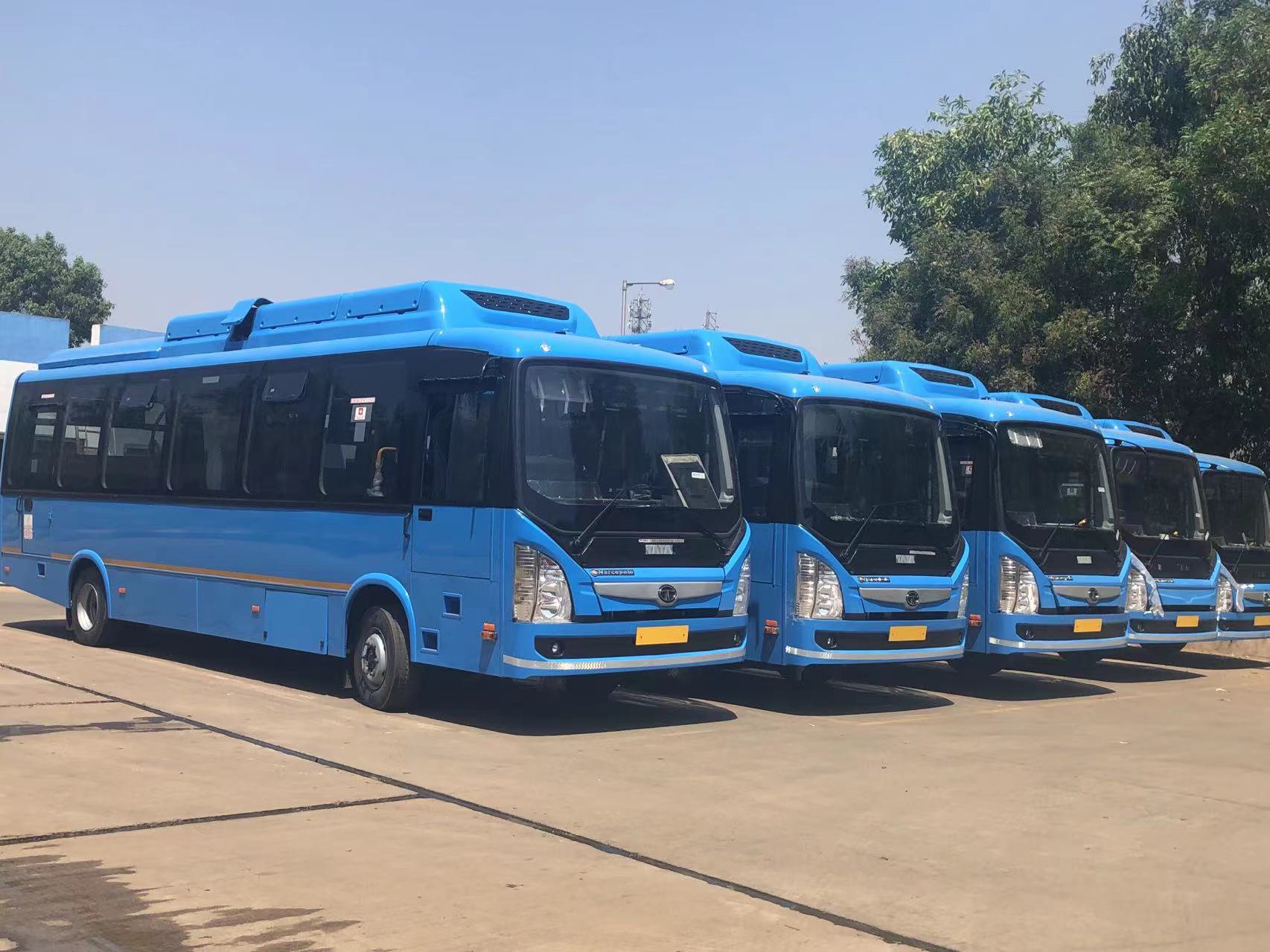

OEM Case:

OEM/ODM Process
During the past 24 years, TKT has grown to the 100% OEM choice in China, for both bus A/C and truck refrigeration units, such as Yutong, Nanjing Golden Dragon, Xiamen Golden Dragon, etc (Bus A/C), CIMC, Xinfei, Hongyu ect (Truck Refrigeration units). For the international market, TKT is the OEM for TATA Motors, TATA Marcopolo Motors, Daewoo, etc., and is exported to more than 85 countries with sales and service centers.

If you are interested in working with TKT, please feel free to contact us.
