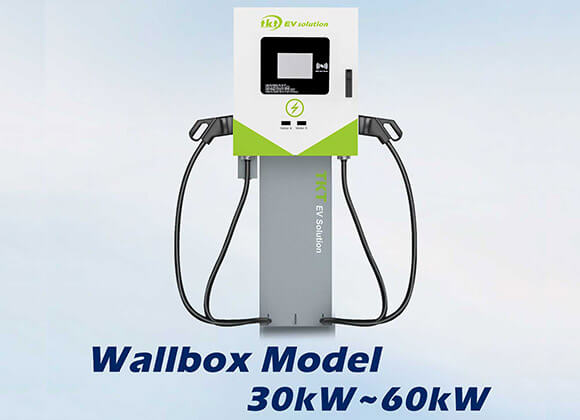

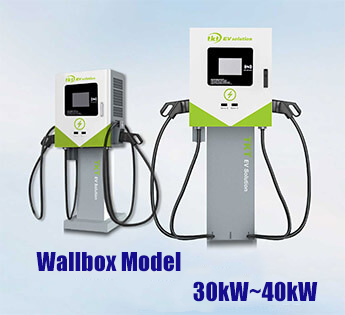

TKT Wallbox DC EV Charger:

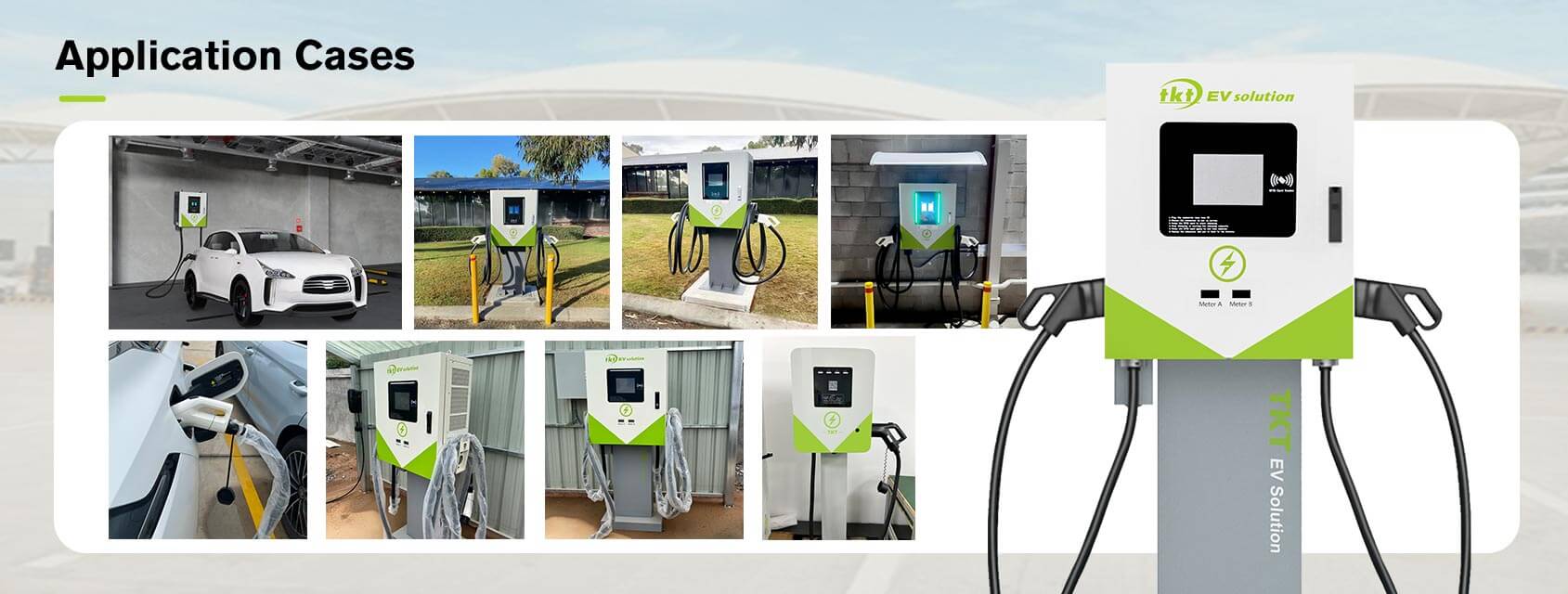

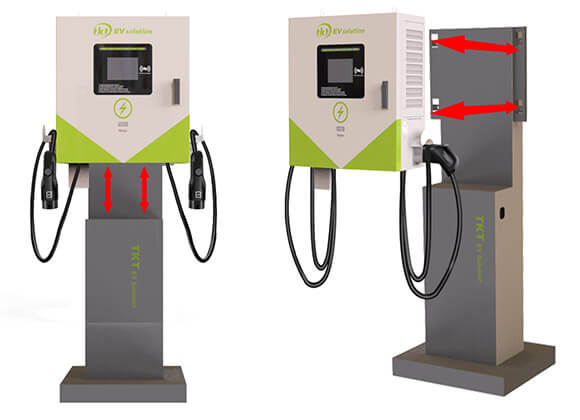

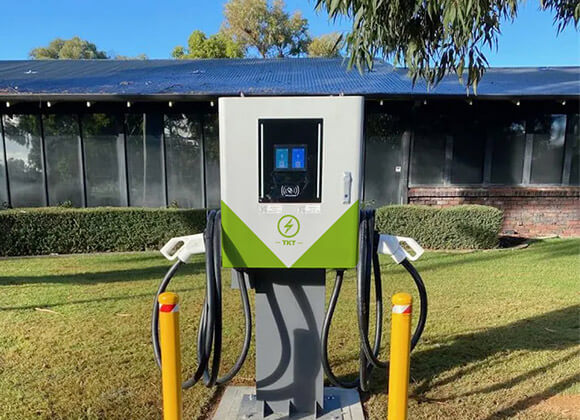

TKT Wallbox DC EV Charger With compact design and elegant cabinet, supports wall mounted and pole mounted. Widely applied in supermarkets, shopping centers, hotels, parking lots, real estate, car dealerships and other service centers.

TKT Fast Charging Station Advantage:

For products:

1. All products are custom designed according to international export standards. Compatible with OCPP1.6 charging protocol standards. The charging voltage can be automatically configured according to the needs of different models.
2. All products use high-quality components of international brands. Our gun line is selected from the well-recognized Phoenix brand. All quality and after-sales are guaranteed.
3. Diversified charging methods, such as automatic charging, scheduled charging, quantitative charging, SOC charging and other charging methods are available. Powerful power distribution and constant power functions shorten the charging time by 20%.
4. The fast charging of high-power charging station can make the vehicle fully charged within 20 minutes, which can save the time of the user and the cost of the operator.

For users:

1. 8-inch touch screen, support multiple languages. The simple design enhances the customer's sense of use.
2. IP54 protection level, moisture-proof, mildew-proof, water-proof, dust-proof, flame retardant. It has protection functions such as over temperature, overload, short circuit, leakage, and battery anti-reverse connection.
3. Humanized design, convenient for customers to swipe card, take out the gun to charge, emergency parking and other operations. The charging gun head is equipped with an electronic lock to prevent the gun head from being pulled out at will while charging to ensure personal safety.

For operators:

1. Integrate Ethernet, 4G communication mode and cloud platform service system. Independent intelligent management realizes user charging, user settlement, report statistics, equipment maintenance, remote monitoring and management and other functions. Managers can also easily count the operation of charging stations.
2. Perfect electrical safety design. It has functions such as timing and real-time monitoring security protection, equipment abnormality pre-diagnosis, alarm feedback, and BMS independent security protection.
3. Our products have a modular design, so each module of the charging pile can be directly upgraded to meet customer needs. At the same time, it has an independent fault diagnosis system. Modules can be replaced independently if there is a problem.

Power	30KW EV Charger	60KW EV Charger
Output Connector	CCS, CHAdeMO, GB/T
Charging Outlet	1 Outlet	2 Outlet
Input Rating	3-phase 400V ±15% AC
Working Frequency	45~65Hz
Output Voltage	150-1000V DC
Output Current	5-100A	5-200A
Power Factor	≥0.99
Efficiency	≥94%
Communication Interface	4G / Ethernet
Screen Size	8'' LCD Touch Screen
Charging Cable Length	5m
IP Class	IP54
Cooling Method	Forced Air Cooling

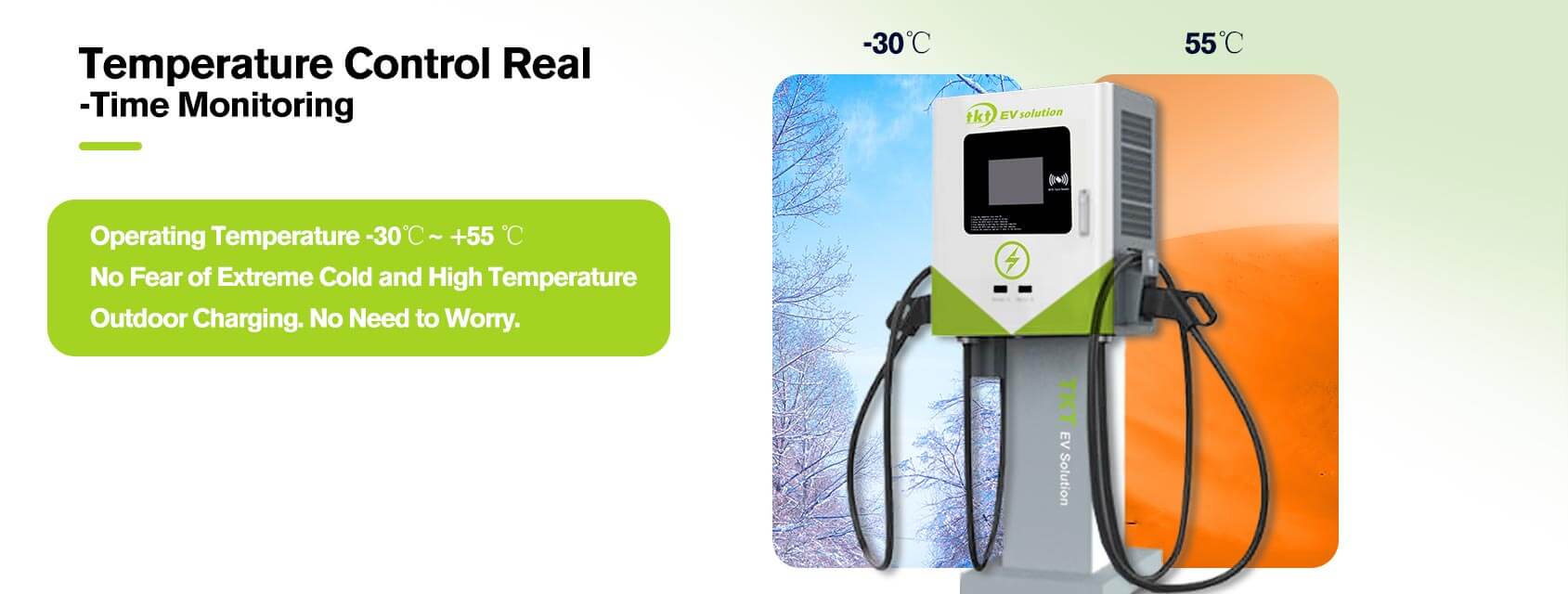

Working Temperature	-30℃ ~ +55℃
Storage Temperature	-35℃ ~ +55℃
Support Language	Chinese, English, etc.
Certificate	CE Certificate, IEC61851-1, IEC 61851-21-2, EN61851-23

TKT DC charging station Factory:

TKT specializes in electric vehicles air conditioner and battery thermal management systems for more than 25 years, and has been providing comprehensive electric vehicle charging station solutions since 2014. We offer a wide range of charging station to help our customers in the pure electric vehicle sector around the world to complete a one-stop service.

TKT has passed ISO9001:2015, IATF16949:2016 quality management system certification, environmental management system certification, intellectual property management system certification and so on. At present, it has obtained more than 100 patents and software Copyrights.

TKT has a production floor of nearly 8,200 square meters, with 30 standard fully automatic production lines, which can realize the whole process of manufacturing from SMT, PTH, spraying, testing to assembly. The annual design capacity can reach 150,000 units. We are developing towards the industrialization of power supplies and charging equipment. It has formed long-term and stable cooperative relations with well-known Chinese enterprises such as Yutong Bus, Zhongtong Bus, BYD Automobile, CATL, etc.
